Modernization of coaches

First, economy class and restaurant coaches

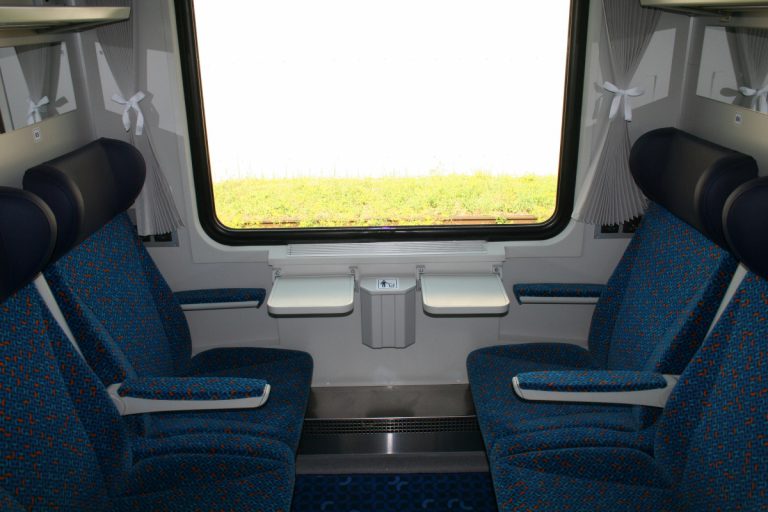

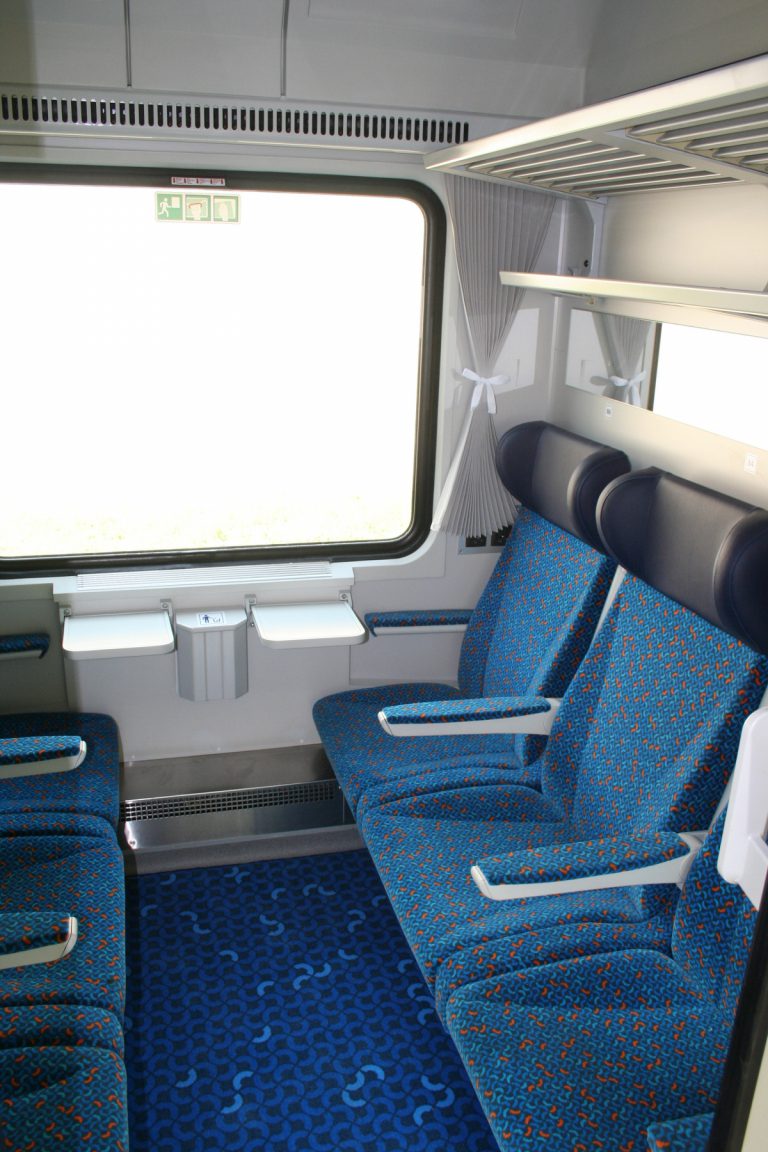

All modernized first and economy class coaches are equipped with Wi-Fi and a new audiovisual information system.

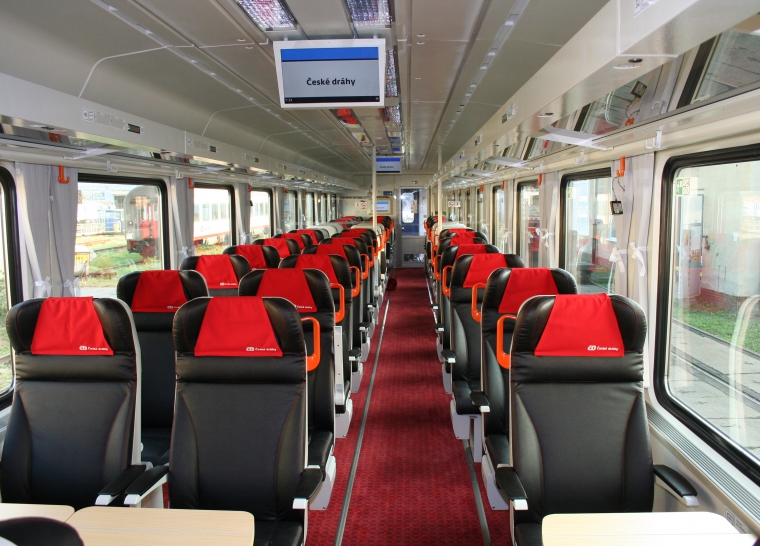

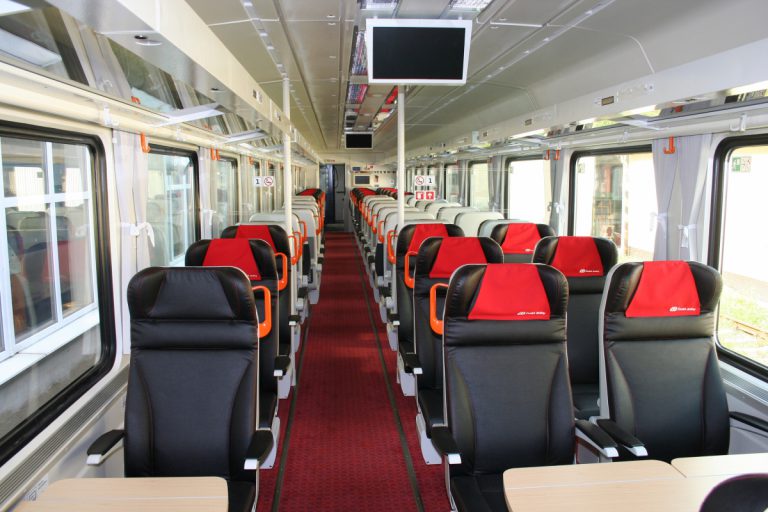

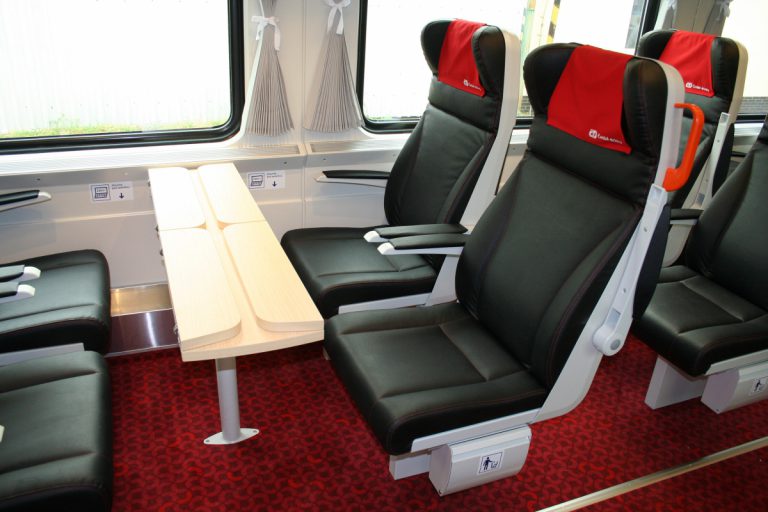

The overhaul also included air-conditioning for operating at temperatures greater than 36°C. First class also has adjustable leather seats, a new trim back (folding table, storage net, folding foot rest), integrated reservation system and individual reading lamps. All coaches were revitalized with interior trim and upgraded toilets. Some of the economy-class coaches include a compartment for families with children and an area for people with reduced mobility.

Of the operating parameters, the central energy source was also changed to provide greater dependability of the coaches. The maximum permissible speed is 200 km/h. The new entrance doors comply with the standards TSI, UIC 560, EN14752 and TB0.

Parameters

PARAMETER
AMPZ143
Track gauge
1 435 mm
Maximum speed
200 km/h
Length over buffers
26 400 mm
Length
25 100 mm
Width
2 825 mm
Maximum height
4 050 mm
Distance between pivots
19 000 mm
Distance between pivots
49 000 kg
Gross weight
56 900 kg
No. of Seats
58
PARAMETER
BMZ241
Track gauge
1 435 mm
Maximum speed
200 km/h
Length over buffers
26 400 mm
Length
25 100 mm
Width
2 825 mm
Maximum height
4 050 mm
Distance between pivots
19 000 mm
Nominal weight
50 000 kg
Gross weight
58 490 kg
No. of Seats
66
PARAMETER
WRMZ815
Track gauge
1 435 mm
Maximum speed
200 km/h
Length over buffers
26 900 mm
Length
25 600 mm
Width
2800 mm
Maximum height
4 050 mm
Nominal weight
53 000 kg
Gross weight
54 100 kg
Number of seats (dining section)
30
Number of places for standing (bar section)
6
