The bidirectional trams for the city of Bergamo are specially designed for the new line that will be built in the city and its surroundings, and represent a significant investment in sustainable urban transport in the region. Their design is specifically adapted to local conditions and sets a new standard in urban mobility thanks to their outstanding features.
Bidirectional 100% low-floor tram
Five sections and three bogies, two of which are equipped with traction motors
Designed for people with reduced mobility (PRM)
Boarding of PRM passengers is eased by mean of automatic door extension

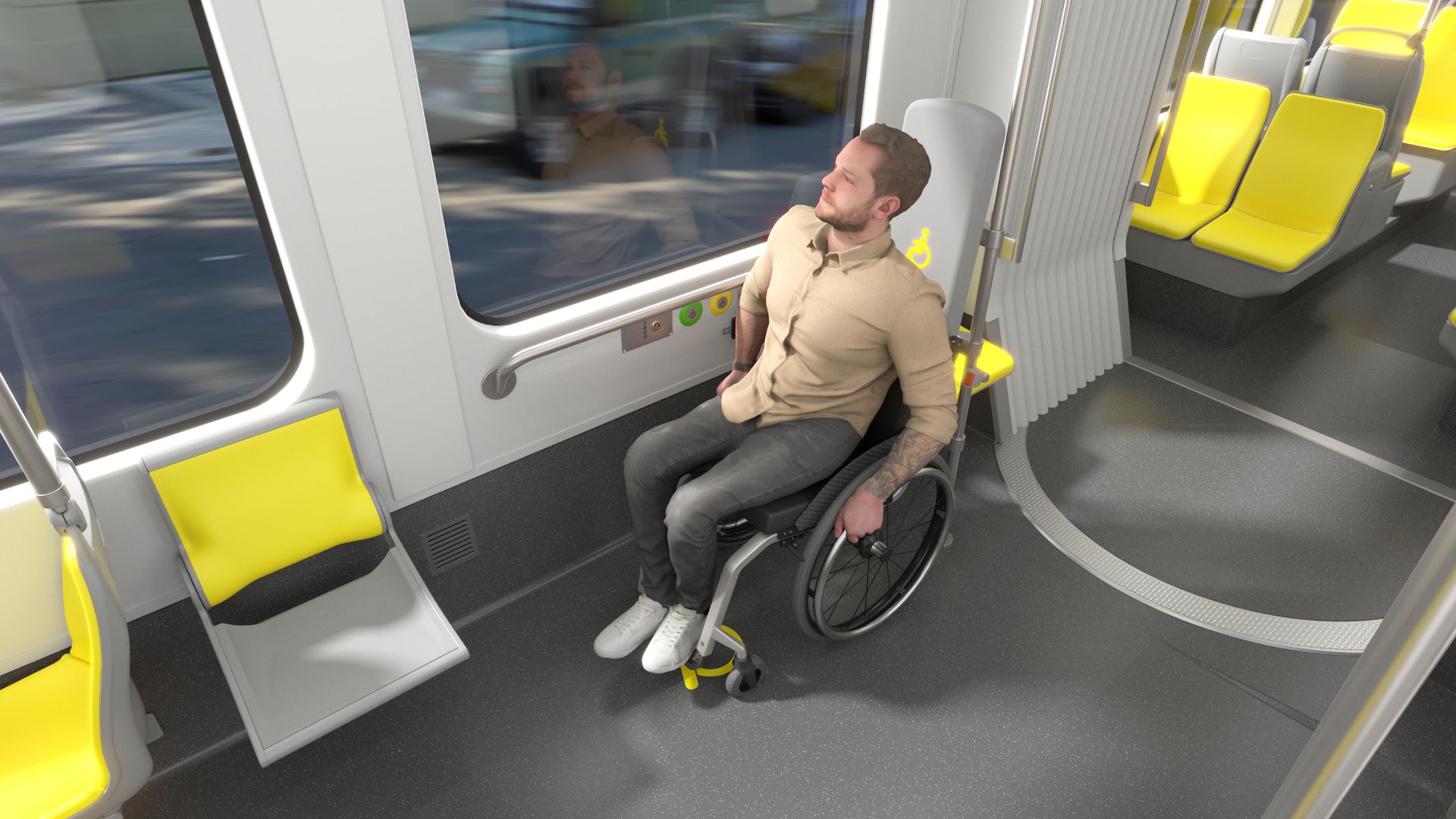

Areas reserved for wheelchair users
Air conditioning system of passenger compartment and driver´s cab
Ergonomic design of driver´s cabine
Ideal view from the cabin enhances safety and situational awareness
Advanced Anti-Collision system
Remote diagnostics enables real-time monitoring and predictive maintenance
Smart braking system ATS
More information
Operated networks
Line T1 a T2 la Valle Brembana Bergamo – Villa d’Almé
Direction of run – operation
Bidirectional
Number of traction bogies
2
Vehicle body length
Max. 33 500 mm
Outside width maximum
2 400 mm
Roof contour height above TOR
3 600 mm
Entry edge height above TOR
350 mm
Passenger compartment low floor ratio
100 %
Persons total (6 persons/m²)
Min. 280
Maximal design speed
70 km/h
Traction line voltage
750 V DC
Digital/electrical equipment
ACS, ATS, CCTV, PIS, PAS
