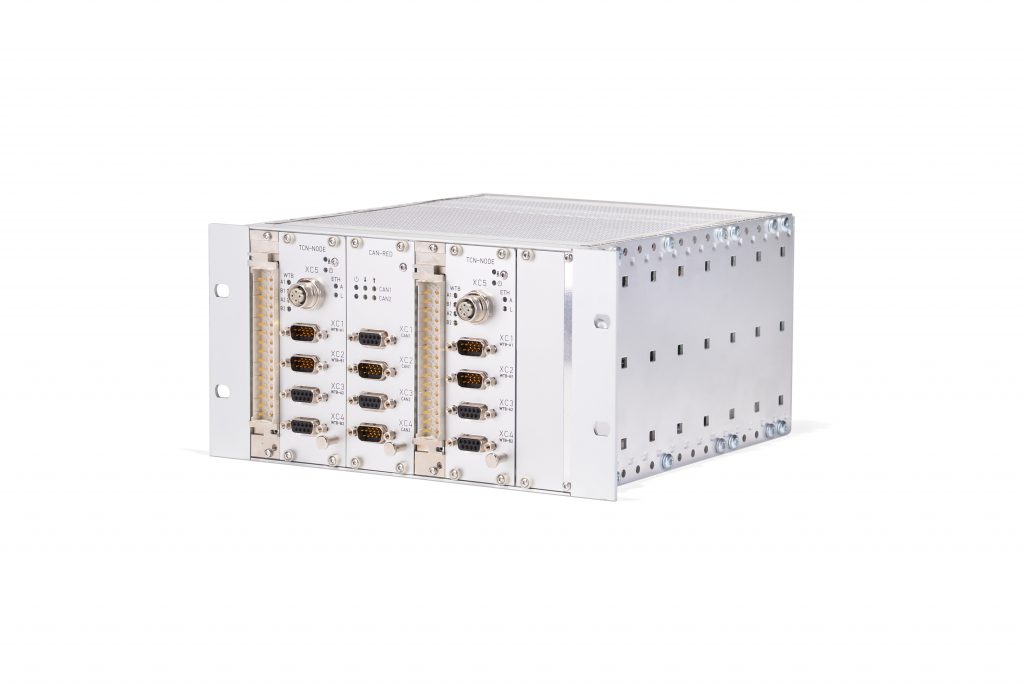

UCI-GATEWAY WTB communication node
Communication node UIC-GATEWAY represents an important component of equipment of railway vehicles operating according to international standard IEC 61375 and leafl et UIC 556. The motivation to comply with this standard is the benefi t to connect various series of railway cars and high functional reliability.
UIC-GATEWAY addresses UIC inauguration of the relevant train, message routing, processing data copying, aggregation functions and server mapping services. Message routing is done between train bus WTB and railway car bus MVB-CAN. Combination MVB-CAN offers features of MVB link layer and CAN bus physical layer. The solution normally contains redundancy of key components including physical WTB interface with full redundancy of hardware components.
Components
• UIC-GATEWAY – module for train WTB bus with redundancy function
• MVB-NODE - MVB communication module
• CAN-RED - CAN communication module
• INTELO+ Viza – servicing and configuration application
KEY FEATURES
UCI-GATEWAY WTB communication node
- Communication node between WTB train bus and railway car bus MVB-CAN
- Compatible with international standard IEC 61375 and UIC 556 leafl et.
- Option allowing to connect/couple various series of railway vehicles
- Optional communication interfaces, analogue and digital outputs/inputs
- Service and confi guration application INTELO+ Viza
- Establishment of MTBF / MKBF and SIL / RAMS safety levels
- Standards EN 50155, EN 50121-3-2, EN 61373, EN 50126, EN 50128, IEC 61375
Configuration database PDM (process data marshaling)
Key component redundancy or optional full redundancy
Standardized cabinet RACK 3U
